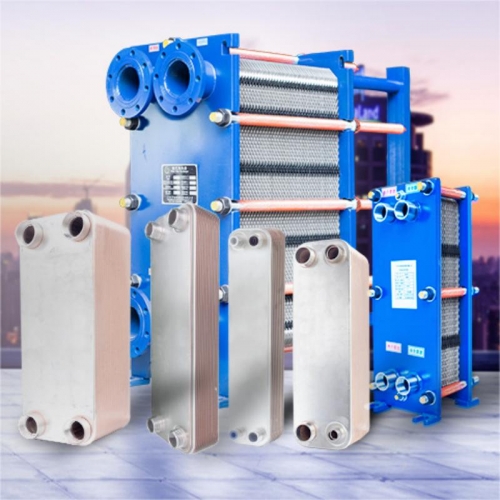

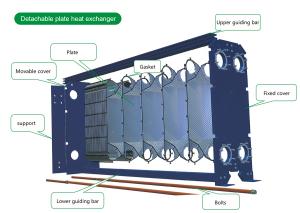

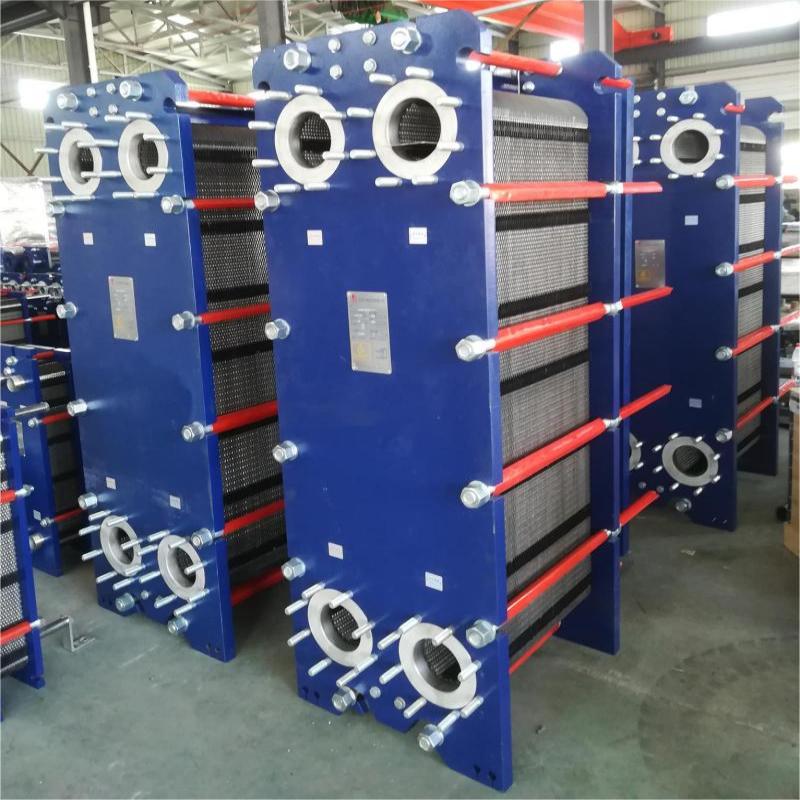

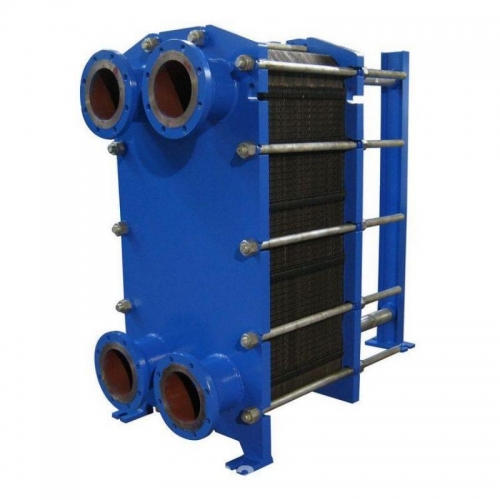

Detachable Plate Heat Exchanger for Cooling Water Process
Application:
Chemical Anodizing industry
1. Can be used in alkali industry, the concentration of electrolyte and lye cooling or heating.
2. Sulfuric acid cooling
3. Desalting process, heat recovery, etc
4. Heat transfer liquid cooling, heating, condensation, reboiling, etc. Biological products, cosmetics and other production industries.
Product Description:
Specializing in the manufacture of plate heat exchangers
| Plate material | Suitable for fluid | tde material of plates | Lliquids suited for |
| Stainless steel (Su304.316, etc.) | Clean water, river water, oil, mineral oil | Su304.316 etc | Purified water、 river water 、edible oil |
| Titanium and titanium fertilizer(Ti. Ti.-pd) | Sea water, salt water, salt | Ti. Ti.-pd | Seawater、 brine 、saletd matters |
| 20Cr,18Ni,6Mo(254smo) | Dilute sulfuric acid, dilute sulfate solution | 20Cr,18Ni,6Mo(254smo) | Dilute sulphunic acid 、tde watery solution of dilutesulphunic saited 、matters inorganic watery solution |
| Nickel (Ni) | High temperature, high concentration of sodium | Ni | Hight temperature and high density caustic natrium |
| HASTEL alloy(C276, D205, B2G) | Concentrated sulfuric acid, hydrochloric acid, phosphoric acid | HASTEL alloy (C276, D205, B2G) | Concentrated sulphunic acid、Hydrochloric acid、Phosphoryiation |

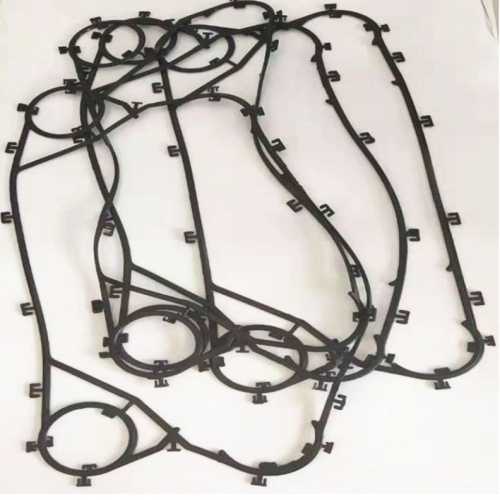

| Gasket material | °C | Suitable for fluid | tde materials of gakesets | Range temperature | Liquids suited for |
| NBR (NBR) | -15 ～＋ 135 | Water, sea water, mineral oil, salt water | NBR | -15 ～＋ 135 | Water 、seawater 、mineral oil 、 brine |
| EPDM | -25 ～＋ 180 | Acid, alkali, fluid | F26 | -25 ～＋ 180 | Boiling、 water、 steam、 acid 、alkali |
| Viton | 0～＋ 180 | Hot water, steam, acid, alkali | viton | 0 ～＋ 180 | Acid 、alkali、 fluid |
Product Parameter:
Plate heat exchanger industry application selection reference table
Selection of plate heat exchangers for air conditioning heating (hot side water 90°C-70°C, cold side 50°C-60°C)
| Specification | Heat exchange load | Heat exchange area | Hot side flow | Cold side flow | Reference heating area | |
| KW | Kcal/h | m² | m³/h | m³/h | m² | |
| BR01-2 | 116 | 10 | 2 | 5 | 10 | 1250 |
| BR01-3.5 | 233 | 20 | 3.5 | 10 | 20 | 2500 |
| BR01-5 | 349 | 30 | 5 | 15 | 30 | 3750 |
| BR018-6.5 | 465 | 40 | 6.5 | 20 | 40 | 5000 |
| BR018-8 | 582 | 50 | 8 | 25 | 50 | 6250 |
| BR03-10 | 698 | 60 | 10 | 30 | 60 | 7500 |
| BR03-12 | 814 | 70 | 12 | 35 | 70 | 8750 |
| BR03-13 | 930 | 80 | 13 | 40 | 80 | 10000 |
| BR03-15 | 1047 | 90 | 15 | 45 | 90 | 11250 |
| BR05-16 | 1163 | 100 | 16 | 50 | 100 | 12500 |
| BR05-19 | 1396 | 120 | 19 | 60 | 120 | 15000 |
| BR05-23 | 1745 | 150 | 23 | 75 | 150 | 18750 |
| BR05-28 | 2093 | 180 | 28 | 90 | 180 | 22500 |
| BR05-32 | 2326 | 200 | 32 | 100 | 200 | 25000 |
| BR05-38 | 2908 | 250 | 38 | 125 | 250 | 31250 |
| BR05-48 | 3489 | 300 | 48 | 150 | 300 | 37500 |
| Specification | Heat exchange load | Heat exchange area | Hot side flow | Cold side flow | |
| KW | Kcal/h | m² | m³/h | m³/h | |
| BR01-1.2 | 116 | 10 | 1.2 | 5 | 2 |
| BR01-2 | 233 | 20 | 2 | 10 | 4 |
| BR01-3 | 349 | 30 | 3 | 15 | 6 |
| BR01-4 | 465 | 40 | 4 | 20 | 8 |
| BR01-5 | 582 | 50 | 5 | 25 | 10 |
| BR01-6 | 698 | 60 | 6 | 30 | 12 |
| BR018-7 | 814 | 70 | 7 | 35 | 14 |
| BR018-8 | 930 | 80 | 8 | 40 | 16 |
| BR018-9 | 1047 | 90 | 9 | 45 | 18 |
| BR018-10 | 1163 | 100 | 10 | 50 | 20 |
| BR03-11 | 1396 | 120 | 11 | 60 | 24 |
| BR03-15 | 1745 | 150 | 15 | 75 | 30 |
| BR03-17 | 2093 | 180 | 17 | 90 | 36 |
| BR03-18 | 2326 | 200 | 18 | 100 | 40 |
| BR03-24 | 2908 | 250 | 24 | 125 | 50 |
| BR03-27 | 3489 | 300 | 27 | 150 | 60 |
| Initial heating time (H) / pool volume (m3) | 8 | 12 | 16 |
| 100 | BR01-3m² | BR01-3m² | |
| 200 | BR01-5m² | BR01-4m² | |
| 300 | BR018-7m² | BR018-6m² | BR018-5m² |
| 400 | BR018-9m² | BR018-7m² | BR018-6m² |
| 500 | BR018-11m² | BR018-9m² | BR018-7m² |
| 600 | BR01-12m² | BR01-11m² | BR01-8m² |
| 800 | BR03-17m² | BR03-14m² | BR03-11m² |
| 1000 | BR03-22m² | BR03-17m² | BR03-13m² |
| 1200 | BR03-25m² | BR03-22m² | BR03-16m² |
| 1500 | BR03-16m²*2 | BR03-13m²*2 | BR03-22m² |
| 1800 | BR03-20m²*2 | BR03-16m²*2 | BR03-11m²*2 |
| 2000 | BR03-22m²*2 | BR03-17m²*2 | BR03-13m²*2 |
| 2500 | BR03-26m²*2 | BR03-22m²*2 | BR03-16m²*2 |
| Heat exchanger selection data sheet | ||||||
| Single phase fluid heat transfer | Heat exchange load (KW) | |||||
| Primary side | medium | Secondary side | medium | |||
| Import temperature (°C) | Import temperature (°C) | |||||
| Exit temperature (°C) | Exit temperature (°C) | |||||
| Flow rate (m3/h) | Flow rate (m3/h) | |||||
| Maximum pressure drop (Kpa) | Maximum pressure drop (Kpa) | |||||
| Evaporator and economizer | Heat exchange load | |||||
| Primary side | Refrigerant medium | Secondary side | Medium | |||
| Evaporation temperature (°C) | Import temperature (°C) | |||||
| Superheat (°C) | Exit temperature (°C) | |||||
| Flow rate (kg/h) | Flow rate (m3/h) | |||||
| Maximum pressure drop (Kpa) | ||||||
| Cold suspect and waste heat recovery unit | Heat exchange load (KW) | |||||
| Primary side | Refrigerant medium | Secondary side | Medium | |||
| Condensation temperature (°C) | Import temperature (°C) | |||||
| Vapor entry temperature (°C) | Exit temperature (°C) | |||||
| Undercooling | Flow rate (m3/h) | |||||
| Flow rate (Kg/h) | Maximum pressure drop (Kpa) | |||||
| Provide us with parameters and contact information so that we can make accurate and timely responses. | ||||||
