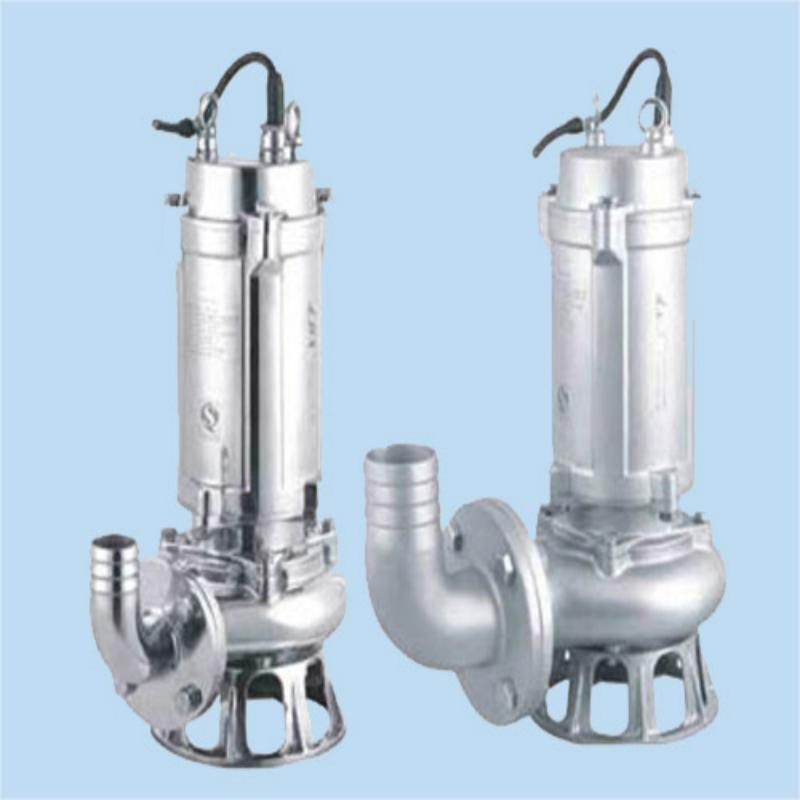

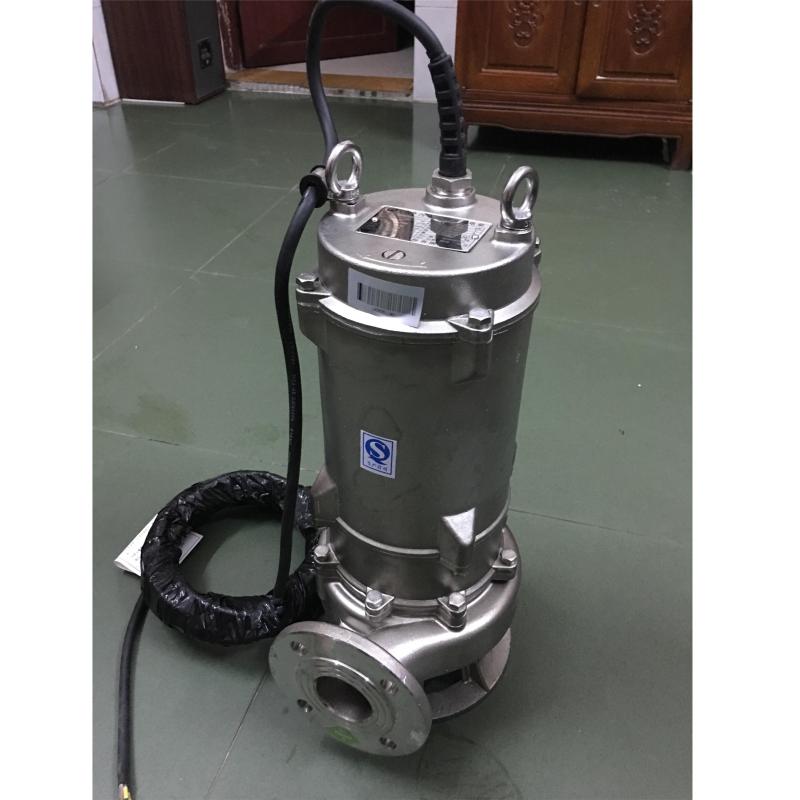

SS Waste Water Disposal Pump for Aluminium Profile Anodizing
Application:
1.Chemical enterprises, power plants, steel plants and sewage treatment plants and other corrosive sewage discharge.
2.Construction, industrial and mining enterprises, municipal engineering and other sewage treatment.
3.Urban environmental protection system sewage, sewage trunk, sewage treatment.
4.Food, seawater drainage, cabin water and other corrosive sewage discharge.
5.Air defense system drainage station, water supply equipment plant, water supply and drainage device.
6.Agricultural irrigation, rural biogas digester, fish farming, fountains, water spraying, etc.
7.Water works, water conservancy projects, etc.
8.Exploration and mining equipment.
Product Description:
Pump body:Cast SS304&316
Motor housing: Cast SS304&316
Motor wire:Copper
Impeller: Cast SS304&316
Mechanical seal:Alloy and silicon carbide
Shaft:SS304&316
Bearing: Japanese Imported
Insulation class:E
Protection class:IP68
Specification:
Capacity:9-200m3/h
Head:7-55m
Power:0.75-15kw
Outlet Diameter:50-200mm
Speed:2900r/min
Advantage:
1.All made of stainless steel casting, to meet the special requirements of customers.
2.Adopt large channel impeller, strong blowdown capacity, no blockage.
3.Fluorine rubber seal or hard alloy mechanical seal can be used according to customer requirements.
4.Compact structure, easy to move, easy to install.
5.It can be equipped with electronic control equipment, which can automatically monitor the leakage, lack of phase and overload of the pump.
6.Can be used with automatic coupling device, installation, lifting, use and maintenance more convenient.
Used:
Conditions of use:
1 medium temperature does not exceed 50℃,R(high temperature resistance) type does not exceed 140℃;
2. Medium density less than 1.2103Kg/m3,PH 2-13.
3. Power is 50 hz or 60 hz / 230 v / 380 v / 415 v / 660 v / 1140 v, three-phase ac power supply.
1.Q:What are your major products?
A:Our products cover aluminium profile mechanical equipment, stainless steel tube mill equipment & spare parts, meanwhile we can provide customized service including a complete set of machines like casting plant, ss tube mill line, used extrusion press line, steel pipe polishing machine and so on, both saving clients’time and efforts.
2.Q:Do you provide installation and training service as well?
A:It is workable. We can arrange specialists to assist installation, testing and provide training after you receive our equipment products.
3.Q:Considering this will be a cross-country trade,how can we make sure the product quality?
A:Based on the principle of fairness and trust, site checking before delivery is allowed. You can check the machine through according to the pictures and videos we provide.
4.Q:What documents will be included when delivering the goods?
A:Shipping documents including : CI/PL/BL/BC/SC etc or accoding to client's requirement.
5.Q:How to guarantee the cargo transportation safety?
A:To guarantee the cargo transportation safety, insurance will covers the cargo. If necessary, our people would follow up at the container stuffing location to make sure a tiny part is not missed.
