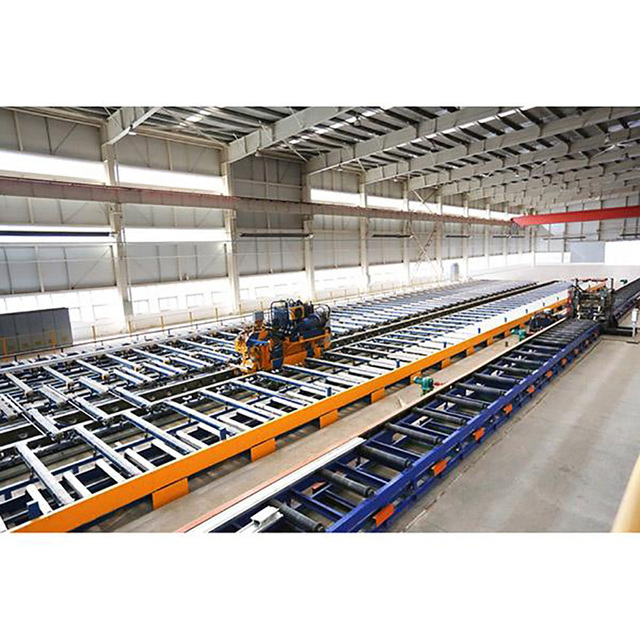

Run Out Handing Convey Table Cool Bed for Aluminum Profile Extrusion Line
Application:
Run Out handing Convey Table is an auxiliary machine for aluminium profile extrusion product line,used for conveying extruded aluminium profile,including :
- Initial table. cooling device

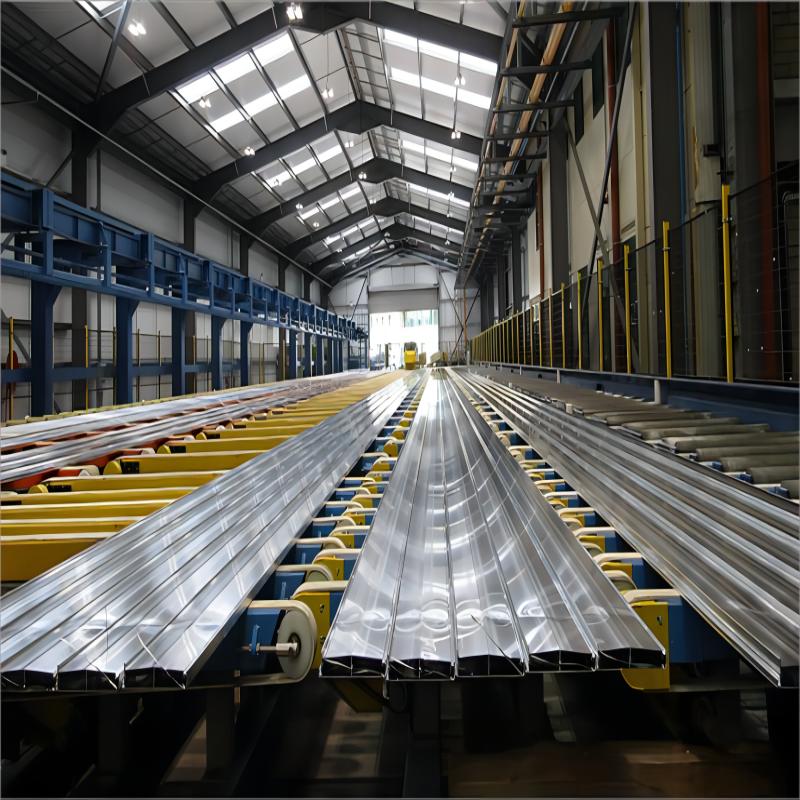

- Run out table(air pressure hydraulic lifting type)
- The table of taking out aluminum profile
- Cooling table
- Trough" bridge"
- Storage table
- Saw table with fixed table
- Finished product sawing machine
- Stretcher
- Control system
Aluminum convey table design basic :
| Initial table length | 8~20m |
| Cooling type | air cooling/water cooling/water quenching system |
| Handling table width | 6~10m |
| Handling table length | 21~50m |
| Match with press size | 3~15inch |
| Stretcher tons | 15~250T |
| Stretcher design | manual/one man operation/two man operation |
Product Description:
Aluminum Profile Handling Table is auxiliary machinery for Extrusion Press Machine,used for conveying and cooling aluminum profiles, it including initital table, cooling system, hydraulic stretcher, finished saw with scrap collector

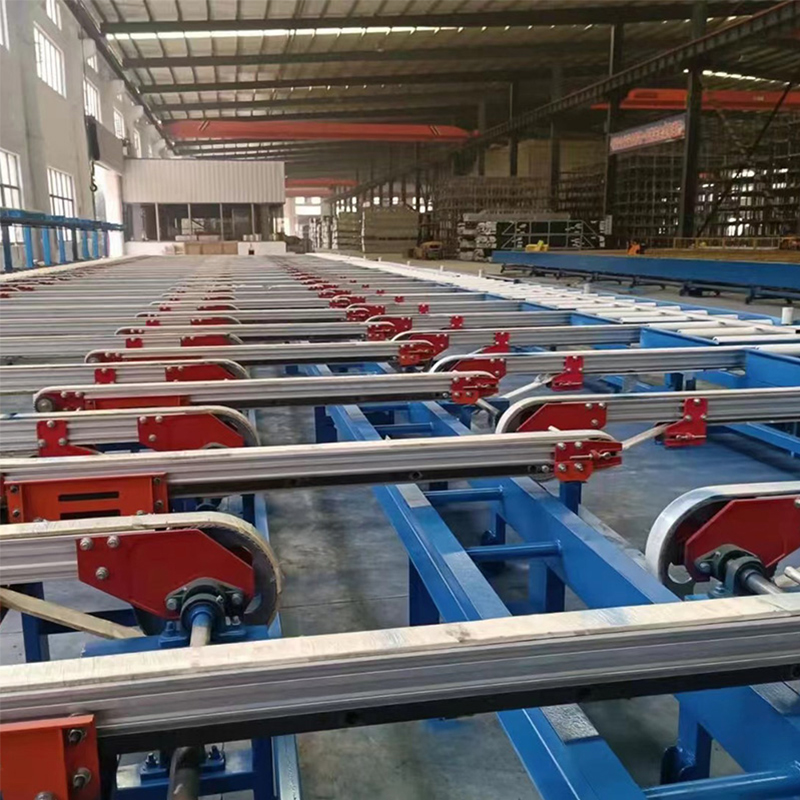

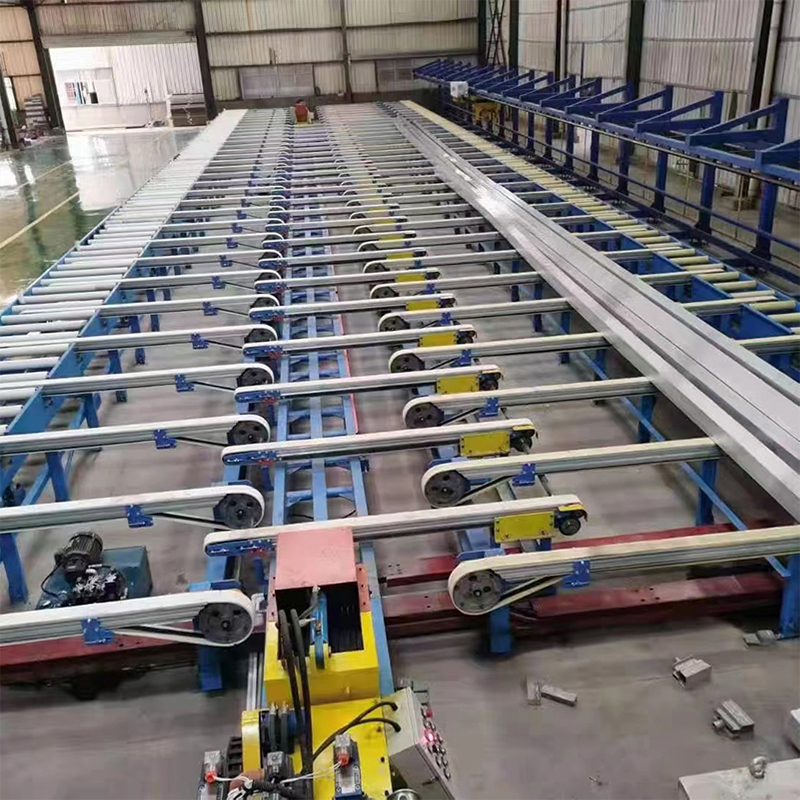

Use high-quality high-temperature felt conveyor belt, stepless speed regulation of high-temperature felt roller conveyor.
The manual or automatic conveyor production line can be combined with the straightener and hydraulic finished saw to form a complete automated production line.
It has further improved production efficiency and process requirements, and is widely applicable to large, medium and small aluminum profiles companies.
Product Specification:
| Thickness | 0.05-0.06mm+0.005mm | 0.05-0.06mm+0.005mm |
| Width | 1250-2050+3mm | 1250-1600+3mm |
| the intensity of tensile | >15Mpa | >10Mpa |
| Ultimate elongation | 300% | 200% |
| the intensity of peeling off at the right angle | >35N/mm | >30N/mm |
| The intensity of peeling off 180 | >7N/mm | >5N/mm |
Feature:
Advanced adhesion to substrates
Maintain polyolefin property
Compatible with polyolefin
Good processibility
Excellent long term adhesion durability
1.Q:What are your major products?
A:Our products cover aluminium profile mechanical equipment, stainless steel tube mill equipment & spare parts, meanwhile we can provide customized service including a complete set of machines like casting plant, ss tube mill line, used extrusion press line, steel pipe polishing machine and so on, both saving clients’time and efforts.
2.Q:Do you provide installation and training service as well?
A:It is workable. We can arrange specialists to assist installation, testing and provide training after you receive our equipment products.
3.Q:Considering this will be a cross-country trade,how can we make sure the product quality?
A:Based on the principle of fairness and trust, site checking before delivery is allowed. You can check the machine through according to the pictures and videos we provide.
4.Q:What documents will be included when delivering the goods?
A:Shipping documents including : CI/PL/BL/BC/SC etc or accoding to client's requirement.
5.Q:How to guarantee the cargo transportation safety?
A:To guarantee the cargo transportation safety, insurance will covers the cargo. If necessary, our people would follow up at the container stuffing location to make sure a tiny part is not missed.
