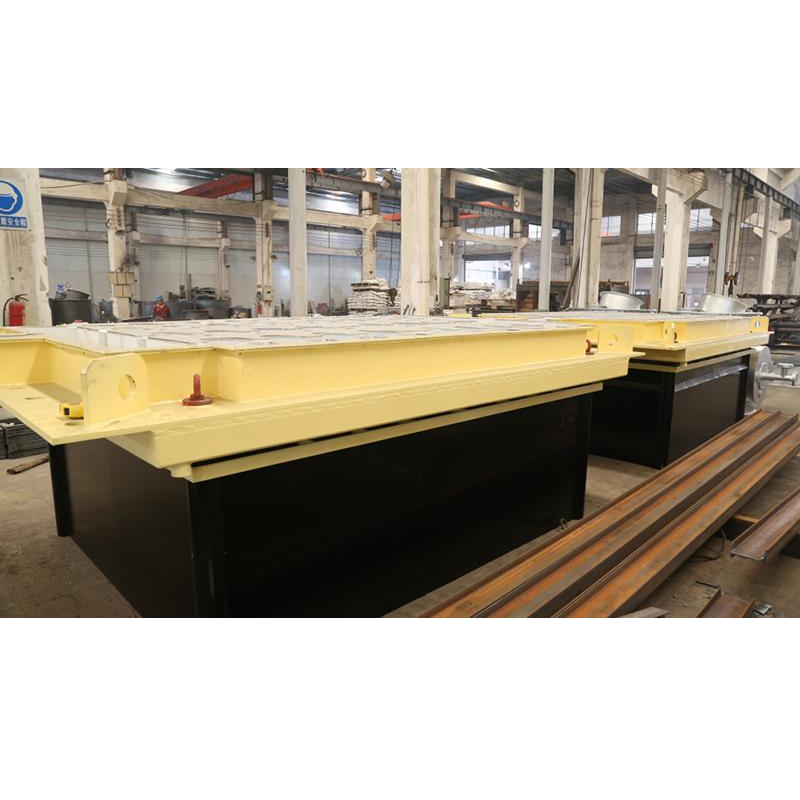

Aluminum Billet Hot Top Casting Table Casting Machine for Aluminum Melting Furnace
Application:

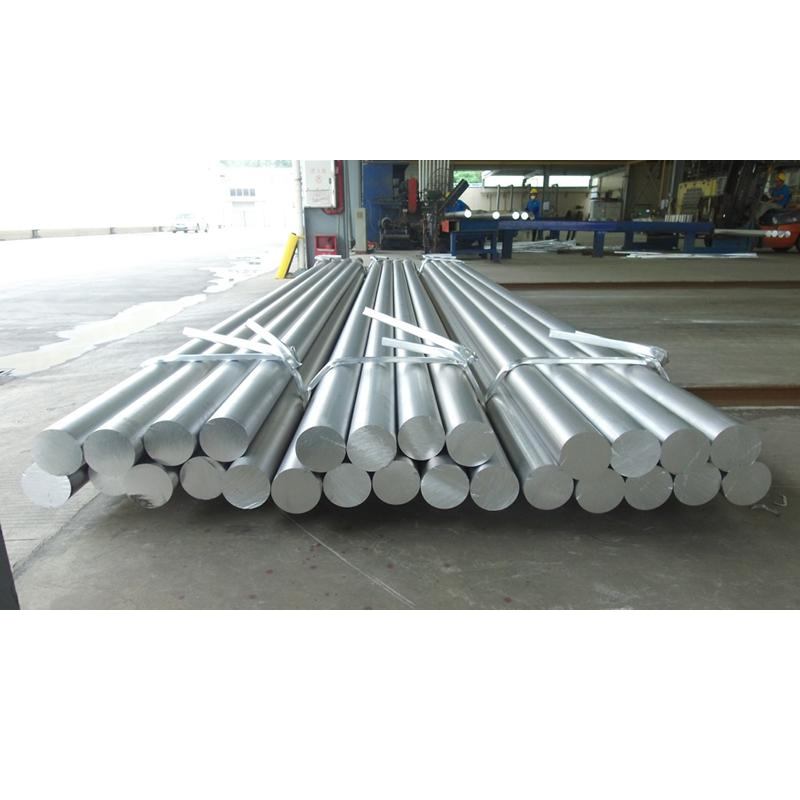

Casting table crystallizes the molten aluminum into billet. It is made up of Q235 steel and non-adhesive aluminum castable. Our company provides round aluminum rods with a casting diameter ranging from 65mm to 680mm. The square aluminum rods and hollow aluminum rods can be customized based on customer requirements.
Product Description:
The main component are cold water tank , condenser, distribution of guide, guide device, positioning device.
Casting type
(1) Same level hop top casting
(2) Boat floating type casting ( for big slab)
- Crystallizer variety
(1) Aluminum matreial water curtain type (Forbelow 10' billet casting, structure is simple andconenient to maintain)
(2) Aluminum materrial water pore type (for above10" billet casting. the structure is morecomplicated, coaling effect will be more uniform)
(3) Copper type (for slab and big ingot)
Product Specification:
Round Billet：
Diameter: P63mm-q600mm
Billet length: 6000-12500
Batch quantity: 2-144 ( Depend on diameter )
Casting table components
Casting
A component from casting table. Its function is to deliver molten aluminum.
Crystallizer
A component from casting platform, it is used to cast the molten aluminum into aluminum rod, similar to mold
.
Diverter
A component from casting platform. Its function is to deliver molten aluminum.
Feature:
Compact arrangement to increase the production efficiency.
Adopts double-layer sealing ring with leaking observation hole to detect water leakage
1.Q:What are your major products?
A:Our products cover aluminium profile mechanical equipment, stainless steel tube mill equipment & spare parts, meanwhile we can provide customized service including a complete set of machines like casting plant, ss tube mill line, used extrusion press line, steel pipe polishing machine and so on, both saving clients’time and efforts.
2.Q:Do you provide installation and training service as well?
A:It is workable. We can arrange specialists to assist installation, testing and provide training after you receive our equipment products.
3.Q:Considering this will be a cross-country trade,how can we make sure the product quality?
A:Based on the principle of fairness and trust, site checking before delivery is allowed. You can check the machine through according to the pictures and videos we provide.
4.Q:What documents will be included when delivering the goods?
A:Shipping documents including : CI/PL/BL/BC/SC etc or accoding to client's requirement.
5.Q:How to guarantee the cargo transportation safety?
A:To guarantee the cargo transportation safety, insurance will covers the cargo. If necessary, our people would follow up at the container stuffing location to make sure a tiny part is not missed.
